Application fields of industrial positioners, ground rails and cantilever walking rails

  • Industry News
  • By: Effisin
  • Dec 23,2024

Follow us

Industrial positioner: mainly used to change the position or shape of objects for welding, assembly and other operations. They are widely used in automated production lines in industrial production to improve production efficiency and product quality. For example, in automobile manufacturing, engineering machinery, aerospace and other fields, positioners can be used for precise positioning and attitude adjustment of workpieces to facilitate welding or assembly operations. Depending on the type of positioner, they can be single axis rotary, double-seat head and tail double rotary, L-type double rotary, double-axis horizontal, C-type double-axis, U-type double-axis, 3-axis horizontal , 3-axis vertical, and other customized models to suit different industrial needs.

 1 Axis Horizontal Rotary Series                                  1 Axis L type Series                                     1 Axis Front and Rear Frame Series

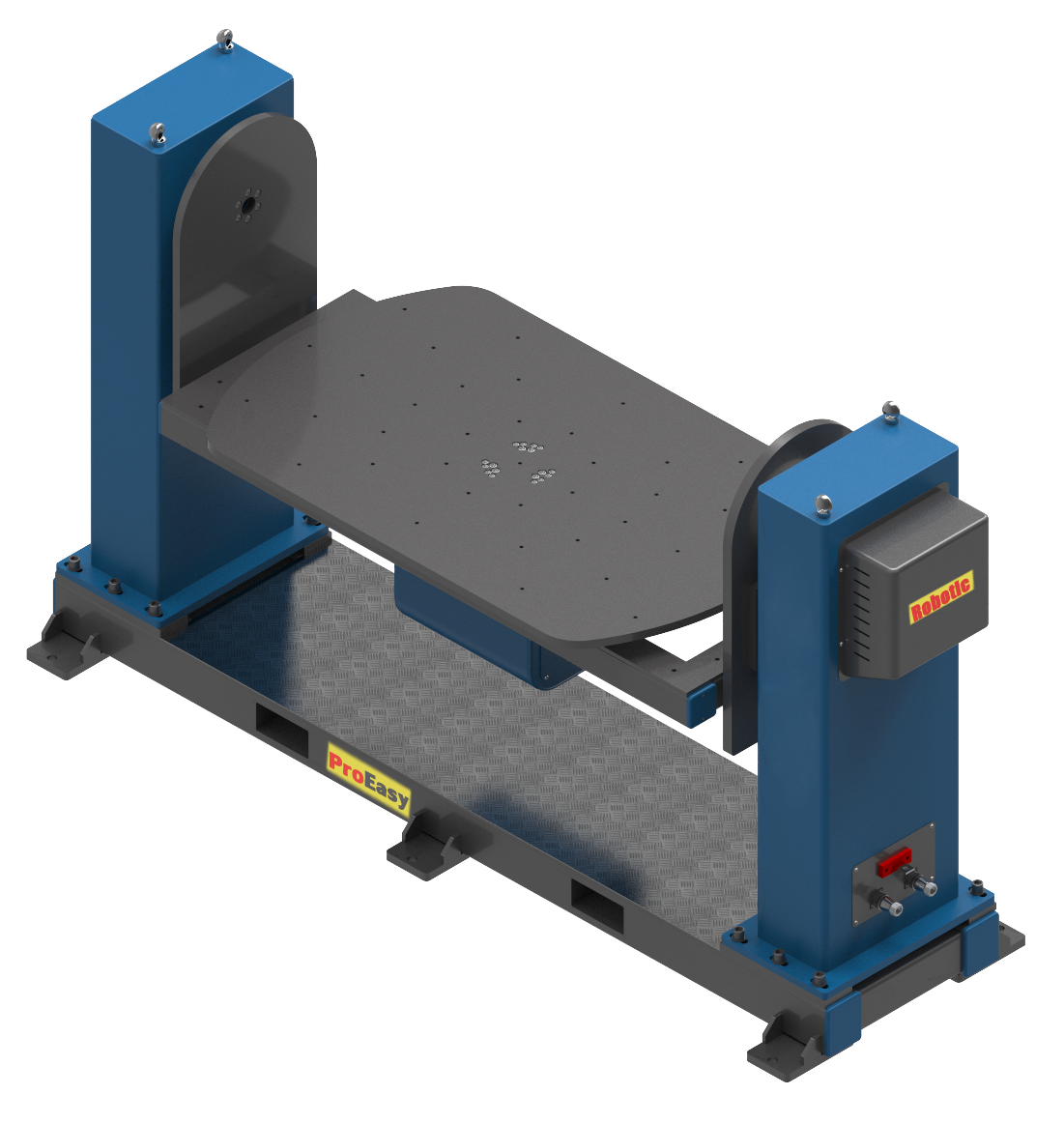

  2-Axis L-type Series                                  2-Axis Horizontal Rotary Series                                       2-Axis C-type Series                                                2-Axis U-type Series


    3-Axis Horizontal Frame Type Series                                          3-Axis Vertical Series
















     Ground rails: Ground rails are usually used to support and guide mobile equipment or vehicles, such as cranes, conveyor belts, automated production lines, etc. They can ensure the stability and accuracy of equipment, improve production efficiency and safety. Ground rails are usually installed directly on the ground. They have high load-bearing capacity and low installation and maintenance costs. They are suitable for occasions that require heavy loads and precise positioning.



    Cantilever walking rails: Truss structures are widely used in construction, bridges, stage construction and other fields to support and stabilize structures. They are composed of multiple members forming a triangular or quadrilateral structure to improve the stability and load-bearing capacity of the structure. The truss structure can reduce its own weight, save materials, has a simple structure, and has relatively low installation and maintenance costs. In addition, trusses can also be used in industrial automation equipment as a support structure for robots or other machinery.

                       CWT400                                                    CWT800-6000-3000                                                              CW-400



                  CW-XY400                                                            CW-XZ400                                                           CW-XYZ400




    The application of Effisin's equipment and technologies not only improves production efficiency, but also helps improve product quality and precision, and is an indispensable part of modern industrial production.
